Configuring Bracelet Settings using the aTouchAway Dashboards

A step-by-step guide for bracelet settings using the aTouchAway Dashboards.

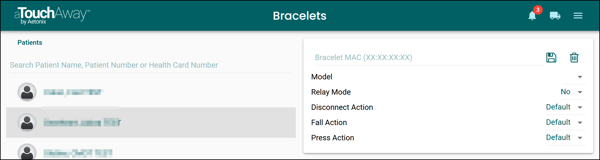

Step 1: Access the bracelets page

On the Dashboards under Patient Management, click Bracelets.

Step 2: Configure the Bracelet Settings

Organization Configuration

Each organization will need to configure the proper settings for each patient using a bracelet.

On the patient’s Bracelet Settings page, settings for each of the following are available:

• Disconnect Action
• Fall Action
• Press Action

To configure, choose an option from each applicable dropdown list. Click the save icon.

Bracelet Functionality

There are 4 ways that the bracelet can be used:

• fall detection
• call button
• accepting video calls
• wandering

Fall Detection

For a bracelet to detect a fall:

• the fall must be from 2.5 feet or higher
• the fall must occur quickly
  • if the fall occurs gradually (for example sliding down against a wall), the bracelet will not detect the fall (patient can still press the button for help)
• the bracelet must be connected to the tablet
  • the bracelet remains connected up to approximately 75 feet from the tablet via Bluetooth
    • walls, floors, and other obstructions may reduce the distance within which the tablet and bracelet remain connected

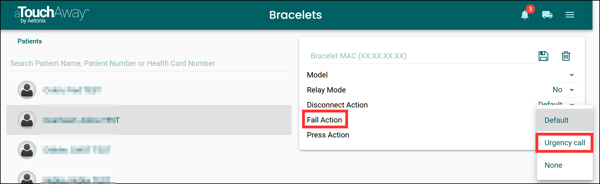

To set up the fall action to trigger an urgency call:

Click on the patient’s name.

Click on the dropdown menu next to Fall Action.

Select Urgency call.

Click the save icon in the top right corner.

If a fall is detected:

• the bracelet will flash red
• if the bracelet is connected to the tablet, the tablet will begin a 60 second countdown
  • if the countdown is not stopped within 60 seconds, the app will move to the next step
• if the bracelet is connected to the tablet and at least one contact has been added to the urgency call list, an urgency call will be triggered
  • the call will cycle through all contacts in the urgency call list nonstop until a call is answered or the urgency call is cancelled on the tablet
    • if a call is not answered within 20 seconds, the system will move to the next person on the list and cycle through the list nonstop
  • one of the following must occur for the urgency call to stop
    • the urgency call must be answered in video
    • the urgency call must be cancelled on the tablet

Call Button

Pressing the button on the bracelet can be set to trigger an urgency call. This functionality is normally used in multi-patient centres.

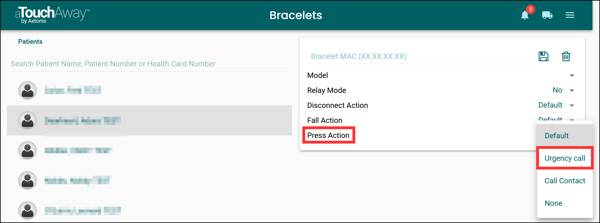

To set up the call button to trigger an urgency call:

Click on the patient’s name.

Click on the dropdown menu next to Press Action.

Select Urgency call.

Click the save icon in the top right corner.

Pressing the button will trigger an urgency call:

• if the bracelet is connected to the tablet and at least one contact has been added to the urgency call list
  • the call will cycle through all contacts in the urgency call list nonstop until the call is answered or cancelled
    • if a call is not answered within 20 seconds, the system will call the next person on the list
  • one of the following must occur for the urgency call to stop
    • the urgency call must be answered in video
    • the urgency call must be cancelled on the tablet

Launching Video Calls

The bracelet can be set to launch video calls.

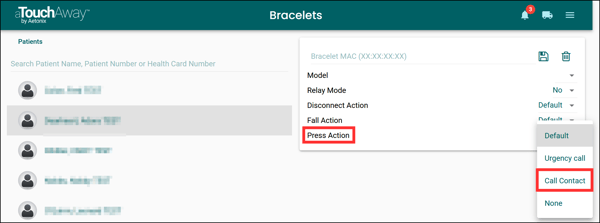

To set up the button to launch a video call:

Click the patient’s name.

Click the dropdown menu next to Press Action.

Select Call Contact.

Click the save icon in the top right corner.

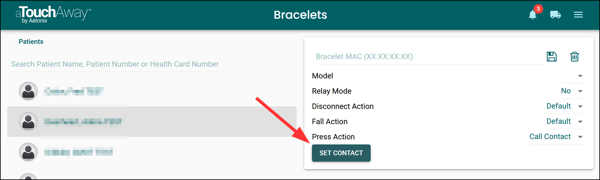

A contact needs to be set.  If the patient already has one or more contacts in the aTouchAway system, click Set contact.

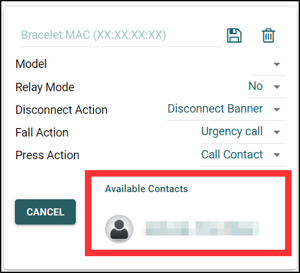

Choose a contact from the list under Available contacts.

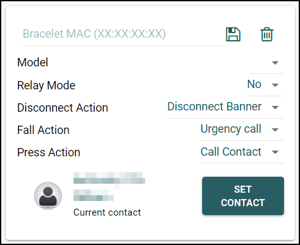

The contact's name will appear at the bottom of the window.

If the patient does not have a contact in the aTouchAway system, the contact needs to be added first.  Then, the contact can be set on the Bracelets page.

Click the save icon in the top right corner.

Wandering

The bracelet can be used to detect wandering if this option has been set up in the system.

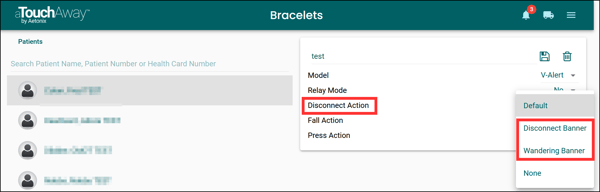

To set up wandering action response:

Click on the patient’s name.

Click on the dropdown menu next to Disconnect Action.

Select either Disconnect Banner or Wandering Banner.

Click the save icon in the top right corner.

If the patient moves out of the range of the Bluetooth (which remains connected up to approximately 75 feet though walls, floors, and other obstructions may reduce the distance within which the tablet and bracelet remain connected), a 2-minute countdown will begin.

If the bracelet reconnects with the tablet within 2 minutes:

• no alerts or urgency calls are sent

If the bracelet does not reconnect within the 2-minute countdown:

• an alert will be triggered
  • depending on the bracelet settings, either a “Disconnect” banner or a “Wandering” banner will appear for the patient manager(s) to see
  • an urgency call will be triggered if the urgency contact list has been set up for the patient

If the bracelet reconnects after the 2-minute countdown is over:

• the banner will appear for the patient manager(s) to see
• the urgency call will be cancelled
  • the alert will still need to be cleared

Organizations with Multiple Bracelets on Site

For multi-patient facilities, Aetonix can create a MESH network between tablets. In this situation, tablets in the facility can be set to connect with each other. This increases the Bluetooth coverage and keeps bracelets connected beyond the distance available to only one tablet.

Multiple Bracelet Setup Tips

If multiple bracelets are present at the location, it has been reported that the scan option sometimes detects the other bracelets used in the building that have already been connected to other devices.

A list of onboarded bracelet MAC addresses should be maintained for each facility / location.

If a list is maintained of these addresses, when a new device is being onboarded, the MAC address on the new device will not have been recorded yet. By comparing the list of previously connected devices, it should be possible to identify the new device that is to be connected as the MAC address would not appear on the list.
